Brand Name : None
Model Number : V Type
Certification : ISO
Place of Origin : China
MOQ : 20 pcs
Price : Negotiable
Payment Terms : T/T
Supply Ability : 6000 pcs/month
Delivery Time : 7~14 days
Packaging Details : Carton
Type : V Bank
Material : Glass fiber
Application : Cleanroom, HVAC SYSTEM
Weight : 5-20kgs
For Air Ventilation System Final Stage Customerized V Bank HEPA filter Replaceable
V-type air filter is mainly used for filtration of more than 0.5μm dust particles, multi- V Mini-pleat design with large filtration area, low resistance, long service life, the use of waterproof ultra-fine glass fiber media, polypropylene plastic frame can be completely incinerated, and mounting flange frame is interchangeable with bag filter.
Features: Air-conditioning system secondary filtration, achieve big air flow demand at low wind resistance.
Application:Industrial and commercial ventilation systems, centralized ventilation and air conditioning system of clean room
| Dimension | Rated Air Flow | Initial Resistance | Efficiency (Class) |
| 295*595*295mm | 1000m³/h | ≤250 | ≥99.99% pa |
| 495*595*295mm | 1500m³/h | ||
| 610*610*295mm | 2100m³/h | ||
| 610*610*295mm | 2700m³/h | ||
| 610*610*295mm |
3000m³/h |
|
|

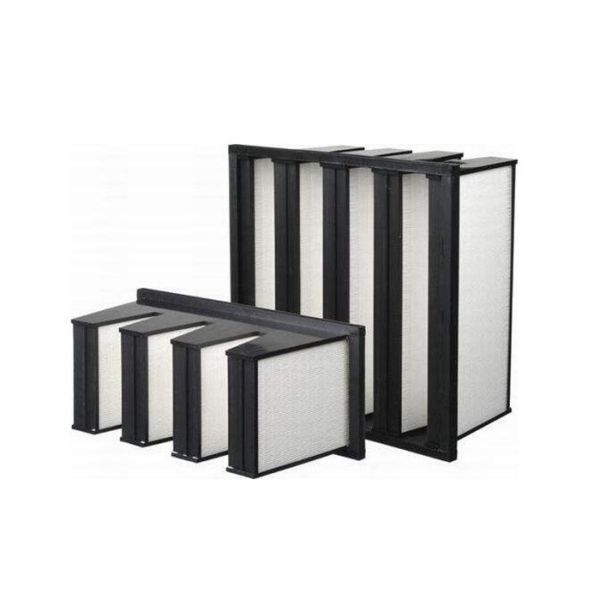

Quiet V Bank Air Filter , Commercial Air Filters For Air Ventilation System Images |
